Applications: As a drive device of compressors, refrigerator remedy apparatus and machine tools etc
Features: High starting torque, low energy consumption. Cast iron or cast aluminum frames.The basic type is rated at 220V/50HZ. 110V/220V, 110V, 240V with 60Hz are also available
according to requirements
OPERATING CONDITIONS：Ambient temperature:-15°C<0<40°C
                                    Altitude: Not exceeding 1000m
                              Rated voltage: 220V/110V
                                  Rated frequency: 50Hz/60HZ

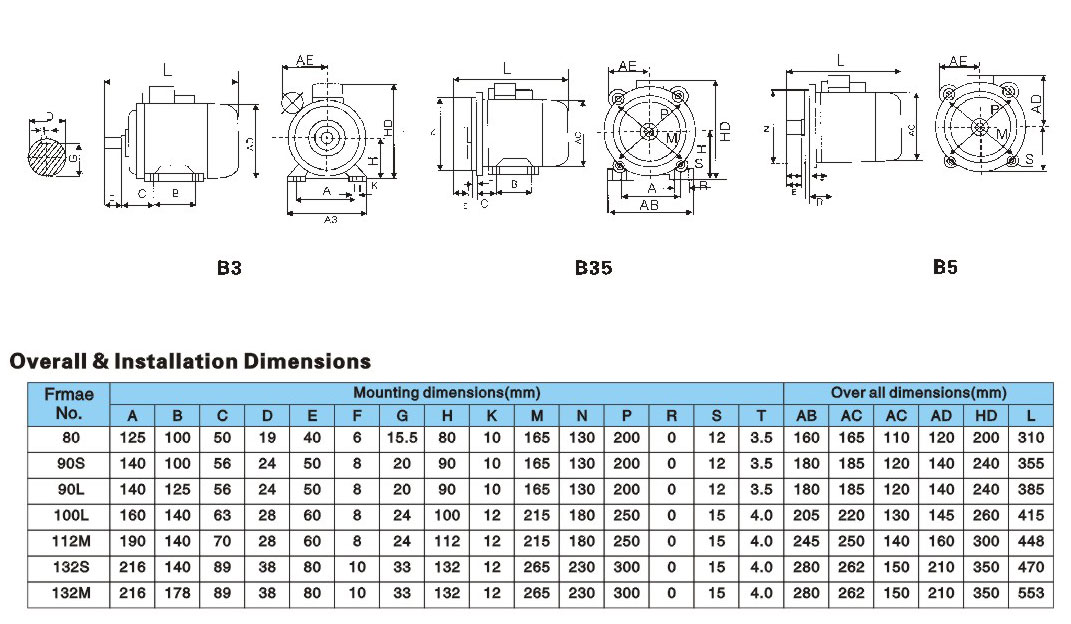

Overall & Installation Dimensions

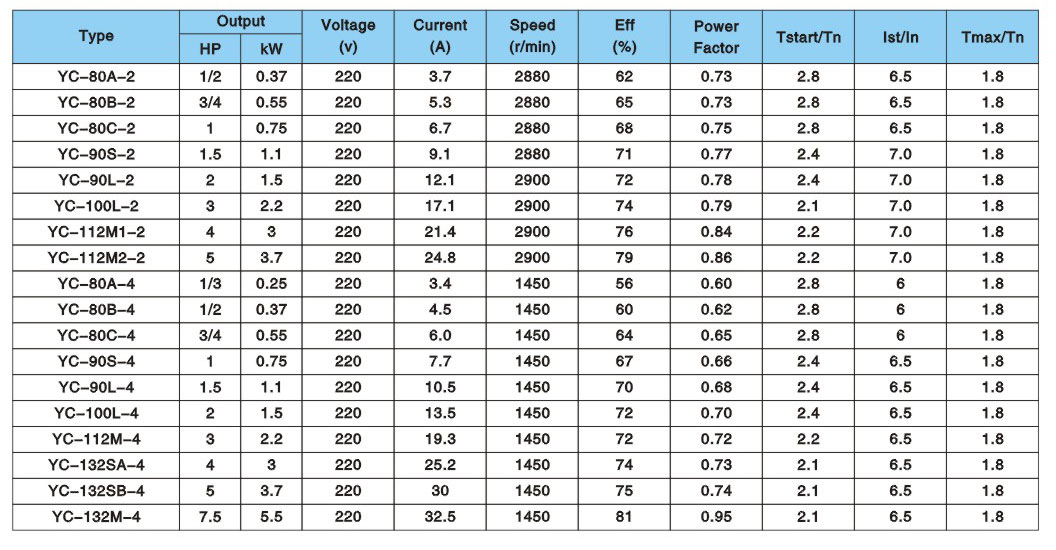

Technical data
