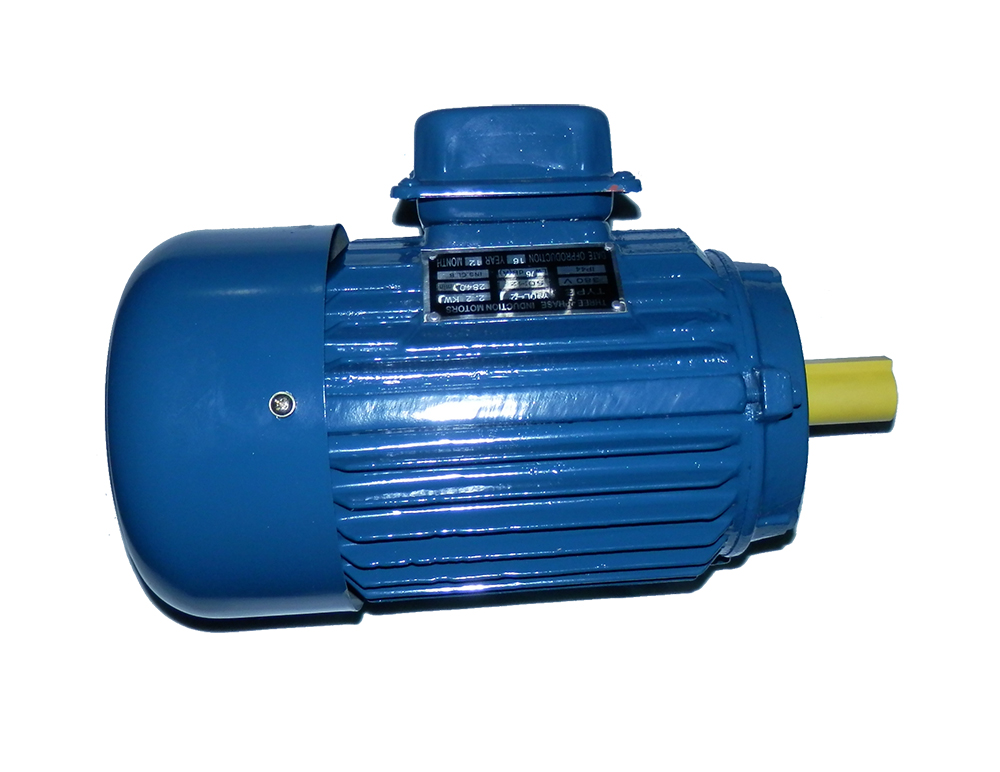

Y series three-phase asynchronous motor2016-12-05

Y3 series aluminum shell motor2016-11-02Technical parameters: TECHNICAL DATA OF Y3 SERIES Franme reference and size Full load current at rated voltage Rated power Full load sreed in revolutions per minute Efficiency Power factor Direct on line starting torque ratio Direct on line starting current ratio Direct on line pull out torque ratio Mean sound pressure level @1m on no load Weight Rotor inertia WK2 NO. Type Amps（A） Power Speed EFF. P.F. LRT/RLT LRA/RLA BDT/RLT Noise Weight J 380V 400V 415V kW HP r/min % CosΦ LwdB(A) kg kgm2 1 Y3-80M1-2 1.77 1.74 1.68 0.75 1 2840 75 0.83 2.2 6.1 2.3 67 16 0.00075 2 Y3-80M2-2 2.61 2.48 2.39 1.1 1.5 2840 76.2 0.84 2.2 6.9 2.3 67 17 0.0009 3 Y3-90S-2 3.46 3.28 3.16 1.5 2 2850 78.5 0.84 2.2 7 2.3 72 20 0.0012 4 Y3-90L-2 4.85 4.61 4.45 2.2 3 2855 81 0.85 2.2 7 2.3 72 23 0.0014 5 Y3-100L-2 6.34 6.03 5.81 3 4 2860 82.6 0.87 2.2 7.5 2.3 76 30 0.0029 6 Y3-112M-2 8.2 7.79 7.51 4 5.5 2880 84.2 0.88 2.2 7.5 2.3 77 41 0.0055 7 Y3-132S1-2 11.1 10.53 10.15 5.5 7.5 2900 85.7 0.88 2.2 7.5 2.3 80 57.5 0.0109 8 Y3-132S2-2 14.9 14.1 13.6 7.5 10 2900 87 0.88 2.2 7.5 2.3 80 60.5 0.0126 9 Y3-160M1-2 21.2 20.2 19.5 11 15 2930 88.4 0.89 2.2 7.5 2.3 86 107 0.0377 10 Y3-160M2-2 28.6 27.2 26.2 15 20 2930 89.4 0.89 2.2 7.5 2.3 86 104 0.0499 11 Y3-160L-2 34.7 33 31.8 18.5 25 2930 90 0.9 2.2 7.5 2.3 86 133 0.055 12 Y3-180M-2 41 39 37.6 22 30 2940 90.5 0.9 2 7.5 2.3 89 156 0.075 13 Y3-200L1-2 55.4 52.6 50.7 30 40 2950 91.4 0.9 2 7.5 2.3 92 218 0.124 14 Y3-200L2-2 67.9 64.5 62.2 37 50 2950 92 0.9 2 7.5 2.3 92 230 0.139 15 Y3-225M-2 82.1 78 75.2 45 60 2960 92.5 0.9 2 7.5 2.3 92 290 0.233 16 Y3-250M-2 100 94.8 91.4 55 75 2970 93 0.9 2 7.5 2.3 93 359 0.312 17 Y3-280S-2 135 129 124 75 100 2975 93.6 0.9 2 7 2.3 94 494 0.579 18 Y3-280M-2 160 152 147 90 125 2975 93.9 0.91 2 7.1 2.3 94 510 0.675 19 Y3-315S-2 195 186 179 110 150 2975 94 0.91 1.8 7.1 2.2 96 875 1.18 20 Y3-315M-2 233 222 214 132 180 2975 94.5 0.91 1.8 7.1 2.2 96 963 1.82 21 Y3-315L1-2 279 265 256 160 220 2975 94.6 0.92 1.8 7.1 2.2 99 1010 2.08 22 Y3-315L2-2 348 331 319 200 270 2975 94.8 0.92 1.8 7.1 2.2 99 1138 2.38 23 Y3-355M-2 433 412 397 250 340 2980 95.2 0.92 1.6 7.1 2.2 103 1900 3 24 Y3-355L-2 545 518 499 315 430 2980 95.4 0.92 1.6 7.1 2.2 103 2300 3.5 25 Y3-80M1-4 1.57 1.49 1.44 0.55 0.75 1390 71 0.75 2.4 5.2 2.3 58 15 0.0018 26 Y3-80M2-4 2.05 1.95 1.88 0.75 1 1390 73 0.76 2.3 6 2.3 58 15.5 0.0021 27 Y3-90S-4 2.85 2.71 2.61 1.1 1.5 1390 76.2 0.77 2.3 6 2.3 61 19 0.0023 28 Y3-90L-4 3.72 3.54 3.41 1.5 2 1400 78.5 0.78 2.3 6 2.3 61 23 0.0027 29 Y3-100L1-4 5.09 4.9 4.72 2.2 3 1410 81 0.81 2.3 7 2.3 64 29 0.0054 30 Y3-100L2-4 6.78 6.39 6.16 3 4 1410 82.6 0.82 2.3 7 2.3 64 31 0.0067 31 Y3-112M-4 8.8 8.36 8.06 4 5.5 1435 84.2 0.82 2.3 7 2.3 65 42 0.0095 32 Y3-132S-4 11.7 11.2 10.8 5.5 7.5 1440 85.7 0.83 2.3 7 2.3 71 52 0.0214 33 Y3-132M-4 15.6 14.8 14.3 7.5 10 1450 87 0.84 2.3 7 2.3 71 64.5 0.0296 34 Y3-160M-4 22.5 21.4 20.6 11 15 1460 88.4 0.84 2.2 7 2.3 75 100 0.0747 35 Y3-160L-4 30 28.5 27.5 15 20 1460 89.4 0.85 2.2 7.5 2.3 75 129 0.0918 36 Y3-180M-4 36.3 34.5 33.3 18.5 25 1470 90 0.86 2.2 7.5 2.3 76 150 0.139 37 Y3-180L-4 43.2 40.8 39.3 22 30 1470 90.5 0.86 2.2 7.5 2.3 76 166 0.158 38 Y3-200L-4 57.6 55.1 53.1 30 40 1470 91.4 0.86 2.2 7.2 2.3 79 228 0.262 39 Y3-225S-4 70.2 66.7 64.3 37 50 1475 92 0.87 2.2 7.2 2.3 81 268 0.406 40 Y3-225M-4 84.9 80.7 77.8 45 60 1475 92.5 0.87 2.2 7.2 2.3 81 313 0.469 41 Y3-250M-4 103 98.1 94.6 55 75 1480 93 0.87 2.2 7.2 2.3 83 366 0.66 42 Y3-280S-4 138.3 131 127 75 100 1480 93.6 0.88 2.2 6.8 2.3 86 480 1.12 43 Y3-280M-4 165 157 152 90 125 1480 93.9 0.88 2.2 6.8 2.3 86 560 1.64 44 Y3-315S-4 201 191 184 110 150 1480 94.5 0.88 2.1 6.9 2.2 93 846 3.1 45 Y3-315M-4 240 228 220 132 180 1480 94.8 0.88 2.1 6.9 2.2 93 940 3.62 46 Y3-315L1-4 288 273 264 160 220 1480 94.9 0.89 2.1 6.9 2.2 97 1044 4.13 47 Y3-315L2-4 360 342 329 200 270 1480 94.9 0.89 2.1 6.9 2.2 97 1162 4.73 48 Y3-355M-4 443 421 406 250 340 1490 95.2 0.9 2.1 6.9 2.2 101 1700 6.5 49 Y3-355L-4 559 531 511 315 430 1490 95.2 0.9 2.1 6.9 2.2 101 1900 8.2 50 Y3-80M1-6 1.3 1.23 1.19 0.37 0.5 880 62 0.7 1.9 4.7 2 54 15 0.0016 51 Y3-80M2-6 1.8 1.7 1.64 0.55 0.75 880 65 0.72 1.9 4.7 2.1 54 16 0.0019 52 Y3-90S-6 2.29 2.18 2.1 0.75 1 905 69 0.72 2 5.3 2.1 57 20 0.0029 53 Y3-90L-6 3.18 3.02 2.91 1.1 1.5 905 72 0.73 2 5.5 2.1 57 23 0.0035 54 Y3-100L-6 4 3.8 3.66 1.5 2 920 76 0.75 2 5.5 2.1 61 29 0.0069 55 Y3-112M-6 5.6 5.29 5.1 2.2 3 935 79 0.76 2 6.5 2.1 65 41 0.014 56 Y3-132S-6 7.4 7.03 6.78 3 4 960 81 0.76 2.1 6.5 2.1 69 59 0.0286 57 Y3-132M1-6 9.75 9.26 8.93 4 5.5 960 82 0.76 2.1 6.5 2.1 69 66 0.0357 58 Y3-132M2-6 12.9 12.3 11.8 5.5 7.5 960 84 0.77 2.1 6.5 2.1 69 76.5 0.0449 59 Y3-160M-6 17.2 16.3 15.8 7.5 10 970 86 0.77 2 6.5 2.1 73 106 0.081 60 Y3-160L-6 24.5 23.3 22.4 11 15 970 87.5 0.78 2 6.5 2.1 73 122 0.116 61 Y3-180L-6 31.6 30 28.9 15 20 970 89 0.81 2 7 2.1 73 154 0.207 62 Y3-200L1-6 38.6 36.6 35.3 18.5 25 980 90 0.81 2.1 7 2.1 76 202 0.315 63 Y3-200L2-6 44.7 42.5 41 22 30 980 90 0.83 2 7 2.1 76 216 0.36 64 Y3-225M-6 59.3 56.3 54.3 30 40 980 91.5 0.84 2 7 2.1 76 287 0.547 65 Y3-250M-6 71 67.5 65.1 37 50 980 92 0.86 2.1 7 2.1 78 355 0.843 66 Y3-280S-6 86 81.7 78.1 45 60 980 92.5 0.86 2.1 7 2 80 444 1.39 67 Y3-280M-6 104 99.5 95.9 55 75 980 92.8 0.86 2.1 7 2 80 498 1.65 68 Y3-315S-6 142 135 130 75 100 985 93.5 0.86 2 6.7 2 85 859 4.11 69 Y3-315M-6 169 161 155 90 125 985 93.8 0.86 2 6.7 2 85 950 4.78 70 Y3-315L1-6 207 196 189 110 150 985 94 0.86 2 6.7 2 85 1031 5.45 71 Y3-315L2-6 245 232 224 132 180 985 94.2 0.87 2 6.7 2 85 1107 6.12 72 Y3-355M1-6 292 278 268 160 220 990 94.5 0.88 1.9 6.7 2 92 1550 9.5 73 Y3-355M2-6 365 347 335 200 270 990 94.5 0.88 1.9 6.7 2 92 1600 10.4 74 Y3-355L-6 457 434 418 250 340 990 94.5 0.88 1.9 6.7 2 92 1700 12.4 75 Y3-80M1-8 0.83 0.84 0.8 0.18 0.25 645 51 0.61 1.8 3.3 1.9 52 15 0.0025 76 Y3-80M2-8 1.1 1.1 1.06 0.25 0.34 645 54 0.61 1.8 3.3 1.9 52 16 0.003 77 Y3-90S-8 1.49 1.41 1.36 0.37 0.5 675 62 0.61 1.8 4 1.9 56 20 0.0051 78 Y3-90L-8 2.17 2.07 1.99 0.55 0.75 680 63 0.61 1.8 4 2 56 23 0.0065 79 Y3-100L1-8 2.43 2.31 2.22 0.75 1 680 70 0.67 1.8 4 2 59 29 0.009 80 Y3-100L2-8 3.36 3.2 3.08 1.1 1.5 680 72 0.69 1.6 5 2 59 31 0.011 81 Y3-112M-8 4.4 4.18 4.03 1.5 2 690 74 0.7 1.8 5 2 61 41 0.0245 82 Y3-132S-8 6 5.66 5.46 2.2 3 710 79 0.71 1.8 6 2 64 61 0.0314 83 Y3-132M-8 7.8 7.41 7.15 3 4 710 80 0.73 1.8 6 2 64 74 0.0395 84 Y3-160M1-8 10.3 9.76 9.41 4 5.5 720 81 0.73 1.9 6 2 68 95.5 0.0753 85 Y3-160M2-8 13.6 12.9 12.5 5.5 7.5 720 83 0.74 1.9 6 2 68 107 0.0931 86 Y3-160L-8 17.8 16.9 16.3 7.5 10 720 85.5 0.75 1.9 6 2 68 128 0.126 87 Y3-180L-8 25.5 24.2 23.3 11 15 730 87.5 0.75 2 6.5 2 70 169 0.203 88 Y3-200L-8 34.1 32.4 31.2 15 20 730 88 0.76 2 6.6 2 73 236 0.339 89 Y3-225S-8 41.1 39 37.6 18.5 25 730 90 0.76 1.9 6.6 2 73 274 0.491 90 Y3-225M-8 48.9 45 43.4 22 30 730 90.5 0.78 1.9 6.6 2 73 290 0.547 91 Y3-250M-8 63 60.2 58.1 30 40 735 91 0.79 1.9 6.5 2 75 370 0.834 92 Y3-280S-8 78 73.9 71.2 37 50 740 91.5 0.79 1.9 6.6 2 76 488 1.65 93 Y3-280M-8 94 89.4 86.1 45 60 740 92 0.79 1.9 6.6 2 76 563 1.93 94 Y3-315S-8 111 106 102 55 75 735 92.8 0.81 1.8 6.6 2 82 852 4.79 95 Y3-315M-8 150 143 138 75 100 735 93.5 0.81 1.8 6.2 2 82 933 5.58 96 Y3-315L1-8 178 169 163 90 125 735 93.8 0.82 1.8 6.4 2 82 1027 6.37 97 Y3-315L2-8 217 206 199 110 150 735 94 0.82 1.8 6.4 2 82 1117 7.23 98 Y3-355M1-8 261 248 239 132 180 740 93.7 0.82 1.8 6.4 2 90 2000 7.9 99 Y3-355M2-8 315 299 288 160 220 740 94.2 0.82 1.8 6.4 2 90 2150 10.3 100 Y3-355L-8 387 368 355 200 270 740 94.5 0.83 1.8 6.4 2 90 2250 12.3 101 Y3-100L1-10 1.33 1.26 1.22 0.25 0.34 530 55 0.52 1.2 3.2 1.7 59 29 0.0057 102 Y3-100L2-10 1.89 1.8 1.73 0.37 0.5 530 56 0.53 1.2 3.2 1.7 59 31 0.0073 103 Y3-112M1-10 2.5 2.37 2.29 0.55 0.75 540 62 0.54 1.2 3.4 1.7 61 41 0.0101 104 Y3-112M2-10 3.3 3.12 3.01 0.75 1 540 63 0.55 1.2 3.4 1.7 61 43 0.0123 105 Y3-132S-10 4.4 4.2 4 1.1 1.5 550 69 0.55 1.2 3.6 1.7 64 60 0.0274 106 Y3-132M-10 5.7 5.5 5.2 1.5 2 565 71 0.56 1.2 3.6 1.7 64 68.5 0.0351 107 Y3-160M1-10 7.7 7.3 7.1 2.2 3 575 76 0.57 1.3 4 1.8 68 108 0.0442 108 Y3-160M2-10 10.2 9.7 9.4 3 4 575 77 0.58 1.3 4 1.8 68 115 0.0842 109 Y3-180M-10 12.2 11.5 11.1 4 5.5 580 82 0.61 1.3 4 1.8 70 164 0.1041 110 Y3-180L-10 16.2 15.4 14.9 5.5 7.5 580 83 0.62 1.3 4 1.8 70 180 0.1409 111 Y3-200L1-10 20.6 19.5 18.8 7.5 10 580 84 0.66 1.3 4.5 1.8 73 219 0.227 112 Y3-200L2-10 30 28.5 27.5 11 15 580 84.5 0.66 1.3 4.5 1.8 73 230 0.379 113 Y3-225M1-10 39.2 37.2 35.9 15 20 580 85.5 0.68 1.3 4.5 1.8 73 302 0.5489 114 Y3-225M2-10 48.1 45.7 44.1 18.5 25 580 86 0.68 1.3 4.5 1.8 73 312 0.6115 115 Y3-280S-10 49.9 47.4 45.7 22 30 585 90.5 0.74 1.5 5.2 2 76 495 0.9324 116 Y3-280M1-10 67.7 64.3 62 30 40 585 91 0.74 1.5 5.2 2 76 531 1.8447 117 Y3-280M2-10 83.5 79.3 76.5 37 50 585 91 0.74 1.5 5.2 2 76 560 2.1577 118 Y3-315S-10 100 95 91 45 60 590 91.5 0.75 1.5 6.2 2 82 852 5.3552 119 Y3-315M-10 121 115 111 55 75 590 92 0.75 1.5 6.2 2 82 903 6.2384 120 Y3-315L1-10 162 154 148 75 100 590 92.5 0.76 1.5 5.8 2 82 1007 7.1217 121 Y3-315L2-10 191 181 175 90 125 590 93 0.77 1.5 5.9 2 82 1100 8.0831 122 Y3-355M1-10 230 218 211 110 150 590 93.2 0.78 1.3 6 2 90 1800 10.176 123 Y3-355M2-10 275 261 252 132 180 590 93.5 0.78 1.3 6 2 90 2000 11.5154 124 Y3-355L-10 334 317 305 160 220 590 93.5 0.78 1.3 6 2 90 2500 13.7514 125 Y3-100L1-12 1.55 1.47 1.42 0.25 0.34 420 50 0.49 1.1 2.8 1.7 59 30 0.0074 126 Y3-100L2-12 2.21 2.1 2.02 0.37 0.5 425 52 0.49 1.1 2.8 1.7 59 32 0.0103 127 Y3-112M1-12 3.01 2.84 2.74 0.55 0.75 435 57 0.49 1.1 3.2 1.7 61 43 0.0126 128 Y3-132S1-12 3.6 3.4 3.3 0.75 1 440 63 0.5 1.1 3.4 1.7 61 58 0.028 129 Y3-132S2-12 5.1 4.9 4.7 1.1 1.5 450 65 0.5 1.1 3.4 1.7 64 63.5 0.0359 130 Y3-132M-12 6.7 6.3 6.1 1.5 2 460 68 0.5 1.1 3.5 1.7 64 74 0.0452 131 Y3-160M-12 9 8.5 8.2 2.2 3 465 74 0.5 1.1 4 1.8 68 111 0.0861 132 Y3-160L-12 12.2 11.6 11.2 3 4 470 74.5 0.5 1.1 4 1.8 68 132 0.1065 133 Y3-180L1-12 14.1 13.4 12.9 4 5.5 470 78 0.55 1.2 4 1.8 70 176 0.1441 134 Y3-180L2-12 18.5 17.6 16.9 5.5 7.5 475 79 0.57 1.2 4 1.8 70 183 0.2322 135 Y3-200L1-12 24.2 23 22.2 7.5 10 475 81 0.58 1.2 4.5 1.8 73 227 0.3877 136 Y3-225M1-12 33.1 31.5 30.3 11 15 480 84 0.6 1.2 4.5 1.8 73 302 0.5616 137 Y3-225M2-12 44.7 42.4 40.9 15 20 480 85 0.6 1.2 4.5 1.8 73 318 0.6256 138 Y3-250M-12 53 50.3 48.5 18.5 25 480 85.5 0.62 1.2 4.5 1.8 73 379 0.9539 139 Y3-280S-12 60 57 55 22 30 485 87 0.64 1.2 4.5 1.8 76 498 1.8871 140 Y3-280M-12 80.1 76.1 73.3 30 40 485 87.5 0.65 1.2 4.5 1.8 76 512 2.2074 141 Y3-315S-12 93.2 88.5 85.3 37 50 485 90 0.67 1.2 4.5 1.5 76 865 5.4784 142 Y3-315M-12 112.8 107.1 103.2 45 60 485 90.5 0.67 1.2 4.5 1.5 82 956 6.3819 143 Y3-315L1-12 137.3 130.5 125.8 55 75 485 90.8 0.67 1.2 4.5 1.5 82 1023 7.2855 144 Y3-315L2-12 186.9 177.6 171.1 75 100 485 91 0.67 1.2 4.5 1.5 82 1142 8.2691 145 Y3-355M1-12 212.3 201.7 194.4 90 125 490 92 0.7 1.2 4.5 1.7 82 1800 10.41 146 Y3-355M2-12 258.4 245.4 236.6 110 150 490 92.4 0.7 1.2 4.5 1.7 90 1920 11.7803 147 Y3-355L-12 309.4 293.9 283.3 132 180 490 92.6 0.7 1.2 4.5 1.7 90 2300 14.0677 148 Y3-112M1-16 1.52 1.44 1.39 0.25 0.34 310 48 0.47 0.9 2.5 1.6 61 38 0.0285 149 Y3-112M2-16 2.34 2.22 2.14 0.37 0.5 315 48.5 0.47 0.9 2.5 1.6 64 45 0.0366 150 Y3-132M-16 3.2 3 2.9 0.55 0.75 330 54 0.48 0.9 2.7 1.6 64 75 0.046 151 Y3-160M1-16 3.8 3.6 3.4 0.75 1 340 62 0.48 0.9 2.8 1.6 68 96.5 0.0877 152 Y3-160M2-16 5.4 5.1 4.9 1.1 1.5 345 64 0.48 0.9 2.8 1.6 68 108 0.1084 153 Y3-160L-16 7.1 6.7 6.5 1.5 2 345 66 0.48 0.9 2.8 1.6 70 127 0.1467 154 Y3-180M-16 9.4 8.9 8.6 2.2 3 350 71.5 0.49 0.9 3.2 1.6 70 156 0.2364 155 Y3-180L-16 12.8 12.1 11.7 3 4 355 72 0.49 0.9 3.2 1.6 73 168 0.3948 156 Y3-200L1-16 16.4 15.6 15 4 5.5 355 74 0.5 0.9 3.2 1.6 73 237 0.5718 157 Y3-200L2-16 22.1 21 20.2 5.5 7.5 355 75 0.5 0.9 3.2 1.6 73 248 0.637 158 Y3-225S-16 28.4 26.9 26 7.5 10 360 78 0.51 0.9 3.5 1.6 73 274 0.9712 159 Y3-250M-16 39.4 37.4 35.7 11 15 360 80 0.53 0.9 3.5 1.6 76 368 1.9215 160 Y3-280M-16 49.8 47.3 45.6 15 20 360 82 0.55 1 3.5 1.6 76 552 2.2475 161 Y3-315S-16 57.6 54.7 52.7 18.5 25 365 86 0.56 1 3.5 1.6 76 855 5.5781 162 Y3-315M-16 68.1 64.6 62.3 22 30 365 87 0.56 1 3.5 1.6 82 936 6.4981 163 Y3-315L1-16 91.7 87.1 83.9 30 40 365 88 0.56 1 3.5 1.6 82 1037 7.4181 164 Y3-315L2-16 112 106 102 37 50 365 88 0.56 1 3.5 1.6 82 1120 8.4195

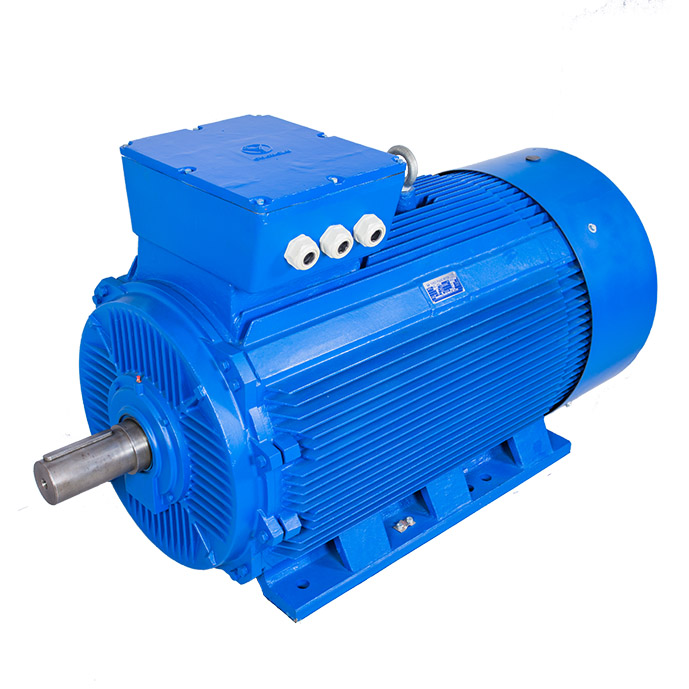

YE2,YE3 series three-phase asynchronous induction motor2016-12-05General introductionThis series motors amount to the sixteenth frame sizes. Among of them, the frames and end-shields of the frame size from H63 to H132 are made of cast iron or aluminlum-alloy,and the frames of H160 or over are made of cast iron with sufficient mechanical strength.All cooling ribs of mo-ors assume verical or horizon-tal dlstributlon.So,the motor entirety looks very beautiul.The terminal boxes are made of cast iron aluminium-alloy die-casting for frame size H63 up to H280 or high strength cast iron for H315 up to H450 and located on the top or a side of the motor for offering users choose.Operating Conditions:Ambient temperature:15℃< θ <40℃Altitude:Alttude should be lower than 1000 meters above sealevel.Rated voltage:220/380V 230/440V 380/660V 400/690VRated frequency:50Hz 、60HzConnection:Star-connection for 3kW of less whereas delta-connection for 4kW and more.Duty/Ratlng:Continuous(S1)Insulation class: Fthe temperature rise of the stator winding is examined at 80k(by reistance method)Protection class:The main body of the motor is lP54,IP55Cooling method:lC 411Overall & Installation Dimensions

Y2 series three-phase asynchronous motors2016-12-05Y2 series three-phase asynchronous motorsdeveloped with new techniques,are renewal and upgrading products of series.Y2 series motors are defined as totally enclosed,fan cooled,squirrel cage type and noted for their novel design, deautiful model,compact structured,low noise,hlgh efflciency,large torque,excellent starting pertormane,easy serving,etc.The motors are adopted with F class insulation and designed with assessing method for insulation system according to in ternational practice,ti enhances greatly have reached and international advanced level of the same king of products at the initIal days of the 90S.Y2 series motors can de widely used as driving equipements of various machineries,such as machine tools, blowers,pupmps,00mpressors,transporters,agricultural and food processing. Pedestal installation size and centre height and other indexes of the motor completely measures by Y series three-phase asynchronous motor.Operating Conditions:Ambient temperature:-5℃ < θ <40℃Altitude:not exceeding 1000mRated voltage:380V or any voltage between220-760vRated frequency:50Hz、60HzProtection ciass:IP44、 lP54 、IP55Insulation class:ClassF the temperature rise of the stator winding is examined at 80kCooling method:IC 411Duty:S1 (continuous)Connectlon:Star-connectlon for up to 3kw,delta-connection for 4kW and above.Overall & Installation Dimensions

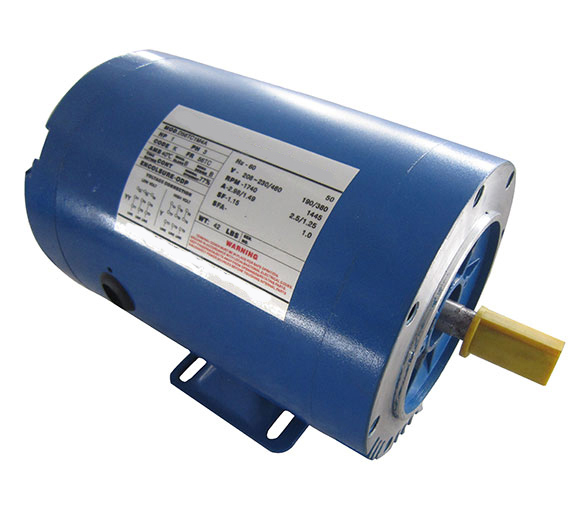

NEMA Single Phase induction motor2016-12-05Special motor nema standard Features:HP:1/4HP-5HP;Frame:48C,56C,1 8C,21C;Rolled steel;NEMA design N;NEMA Service FactorInsulation Class F.UL approved;Endosure:ODPTEFC;IP Class:1P23;CSA&CUS certified;Overall & Installation Dimensions

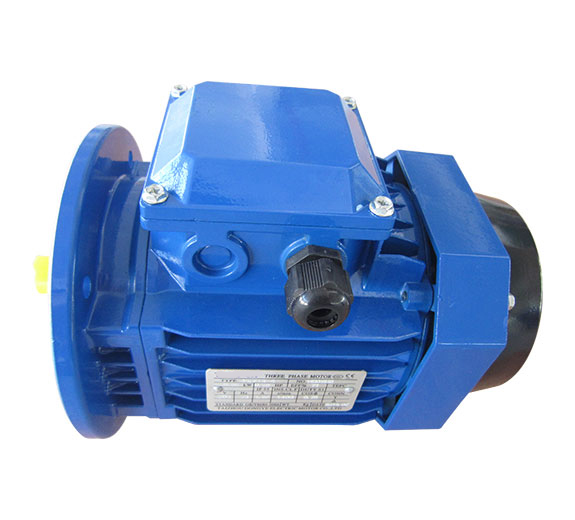

YEJ2 elctromagnetic-brake motors2016-12-05General introductionYEJ2 series electromagnetic-brake motors are improved products on the base of YEJ series.The technical properties of its motor conform to there quirements of Y2 series.The performance of the brake assembly are improved.YEJ2 can make action promptly when the power of electric motor is off. Quick brake time doesn't exceed 0.15 second for frame sizes 63MM up to 30MM up to 160MM.This series can acquire slow brake time by changing the connection In the terminal box as per customer4s request. This series have low noise and the braking performance Is reliable The working principle: The electromagnetic brake get 99 or 170V DC voltage through the 220V AC or rectifier. At the same time,thearmature is attracted by electromanet,ThIs makes brake disc ratable and enables motor to run freely.When the power Is oL the electromagnet Loses electromagnetic force.The armature is pushed by the spring and sticks to end shield of the motor Immedlatelythe rotation is stopped therefore. This series are widely used in machine toois packaging machinery、 woodworker machinery、 food processing machinery chemical engineering machinery、 textile machinery、 construction machinery、 gear reducer and so on.Conditions：motors of this series can continuously run at the rated power under the following conditions;1 .Altltude:above sea level,not exceeding 1000m.2.Ambient temperature:it varies with seasons but not exceeding +40℃Voitage,Frequency and dutyFrequency:50Hz,60HzVoltage:220/380V, 380/660VConnection:Y-Connectlon for 3kw and below whereasdelta-connection for 4kw and above.Duty:Continuous(Sl)Insulation class:B、FProtectlon:IP44,IP54 or lP55*Imported bearing and locked bearing at D-end on on request.Overall & Installation Dimensions

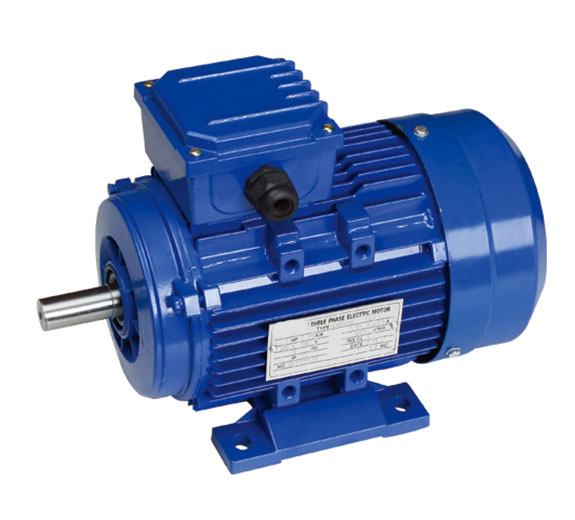

MS series three-phase asynchronous motor with aluminium housing 2f2016-12-05General introduction MS series aluminum housing three-phase asynchronous motorswith latest design in entirety,are made of selected quality materials and conform to the lEG standard.MS motors have good performance .safety and reliable operation,nlce appearance, and can be maintained very conveniently,while with low nolse.llttle vibration and at the same time light weight and simple constructlon.These motors can be used for general drive.MS series aluminum housing three-phase asynchronous motorswith latest design in entirety,are made of selected quality materials and conform to the lEG standard.MS motors have good performance .safety and reliable operation,nlce appearance, and can be maintained very conveniently,while with low nolse.llttle vibration and at the same time light weight and simple constructlon.These motors can be used for general drive. - See more at: http://www.dongyemotor.com/ProductsX/productclassshow/909#sthash.hJ1mlNGz.dpuOperating Conditions: Ambient temperature:-15℃< θ <40℃Altitude:not exceeding 1000mRated voltage:380VRated frequency:5OHz/6OHzProtection ciass:IP54、 lP55Insulation class:CIassB/FCooling method:IC 411Duty:S1 (continuous)Overall & Installation Dimensions

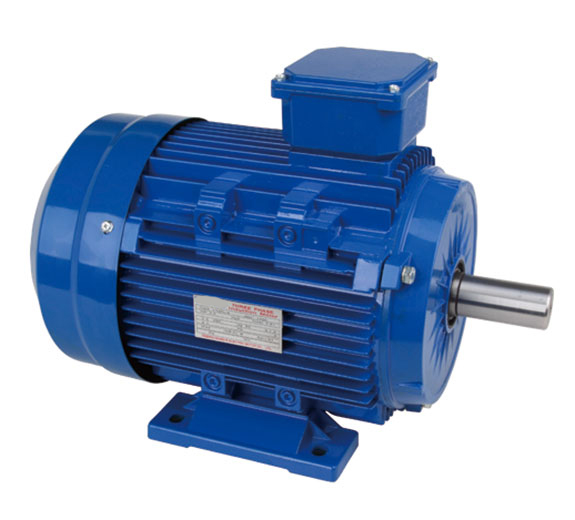

ABB series three-phase asynchronous motor with aluminium housing 2f2016-12-05General introduction ABB series aluminum housing three-phase asynchronous motorswith latest design in entirety,are made of selected quality materials and conform to the lEG standard.MS motors have good performance .safety and reliable operation,nlce appearance, and can be maintained very conveniently,while with low nolse.llttle vibration and at the same time light weight and simple constructlon.These motors can be used for general drive.MS series aluminum housing three-phase asynchronous motorswith latest design in entirety,are made of selected quality materials and conform to the lEG standard.MS motors have good performance .safety and reliable operation,nlce appearance, and can be maintained very conveniently,while with low nolse.llttle vibration and at the same time light weight and simple constructlon.These motors can be used for general drive. - See more at: http://www.dongyemotor.com/ProductsX/productclassshow/909#sthash.hJ1mlNGz.dpuOperating Conditions: Ambient temperature:-15℃< θ <40℃Altitude:not exceeding 1000mRated voltage:380VRated frequency:5OHz/6OHzProtection ciass:IP54、 lP55Insulation class:CIassB/FCooling method:IC 411Duty:S1 (continuous)Overall & Installation Dimensions
